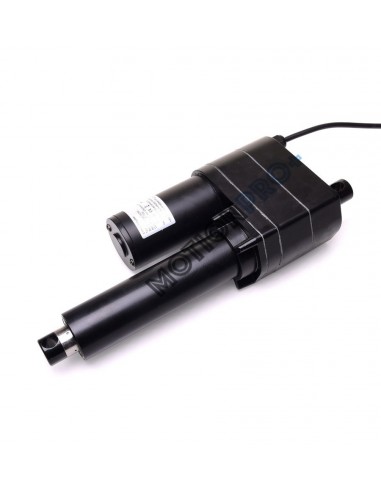

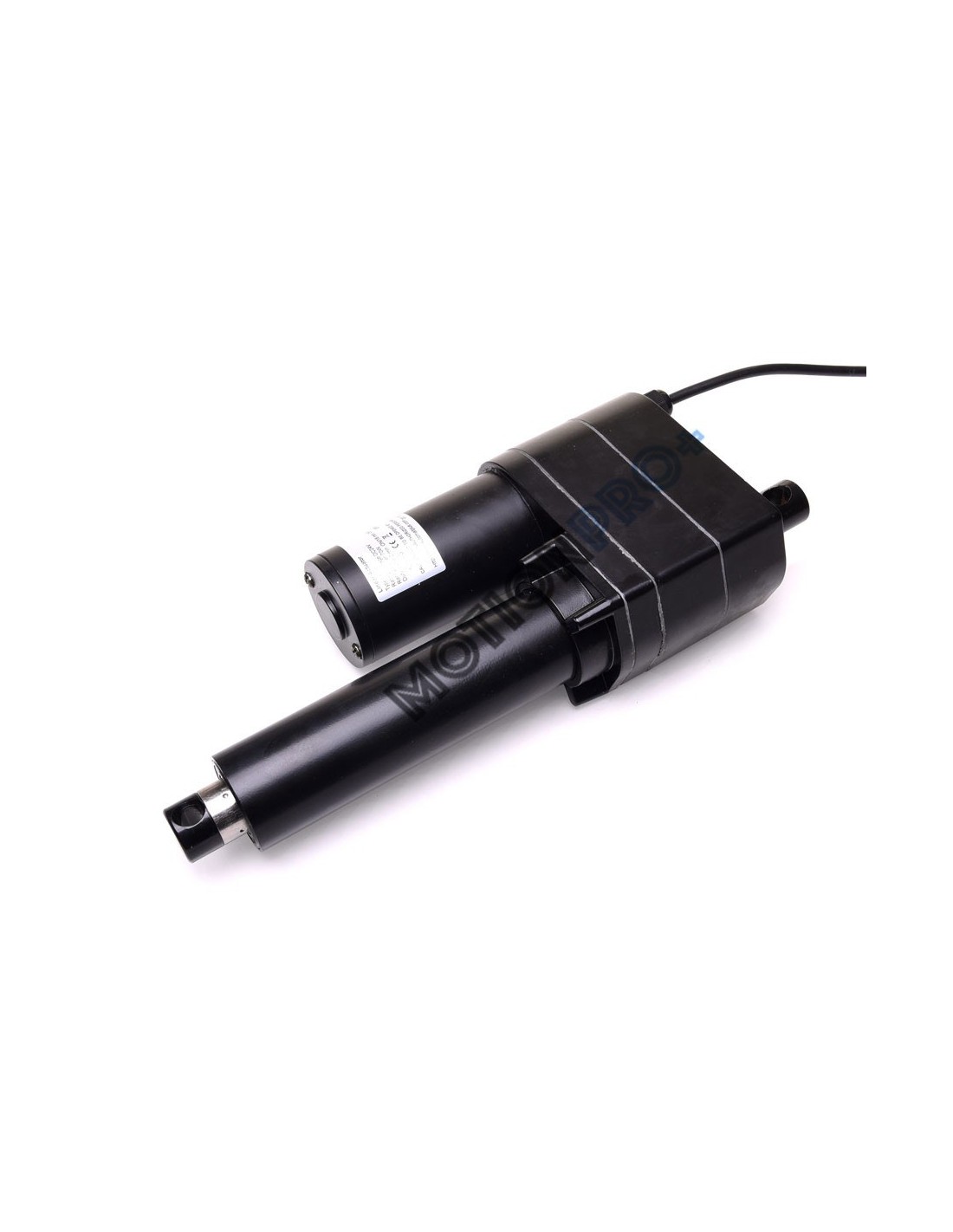

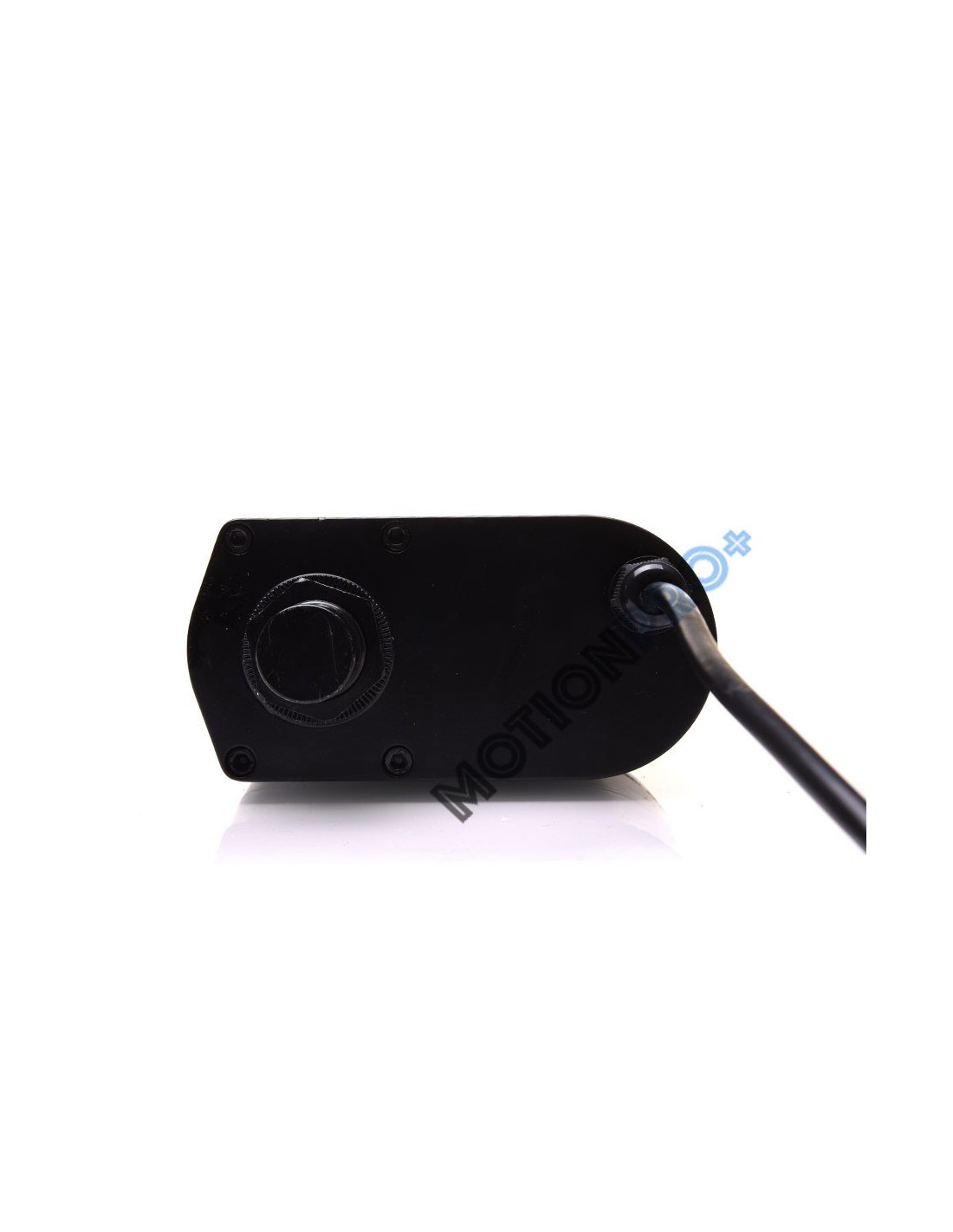

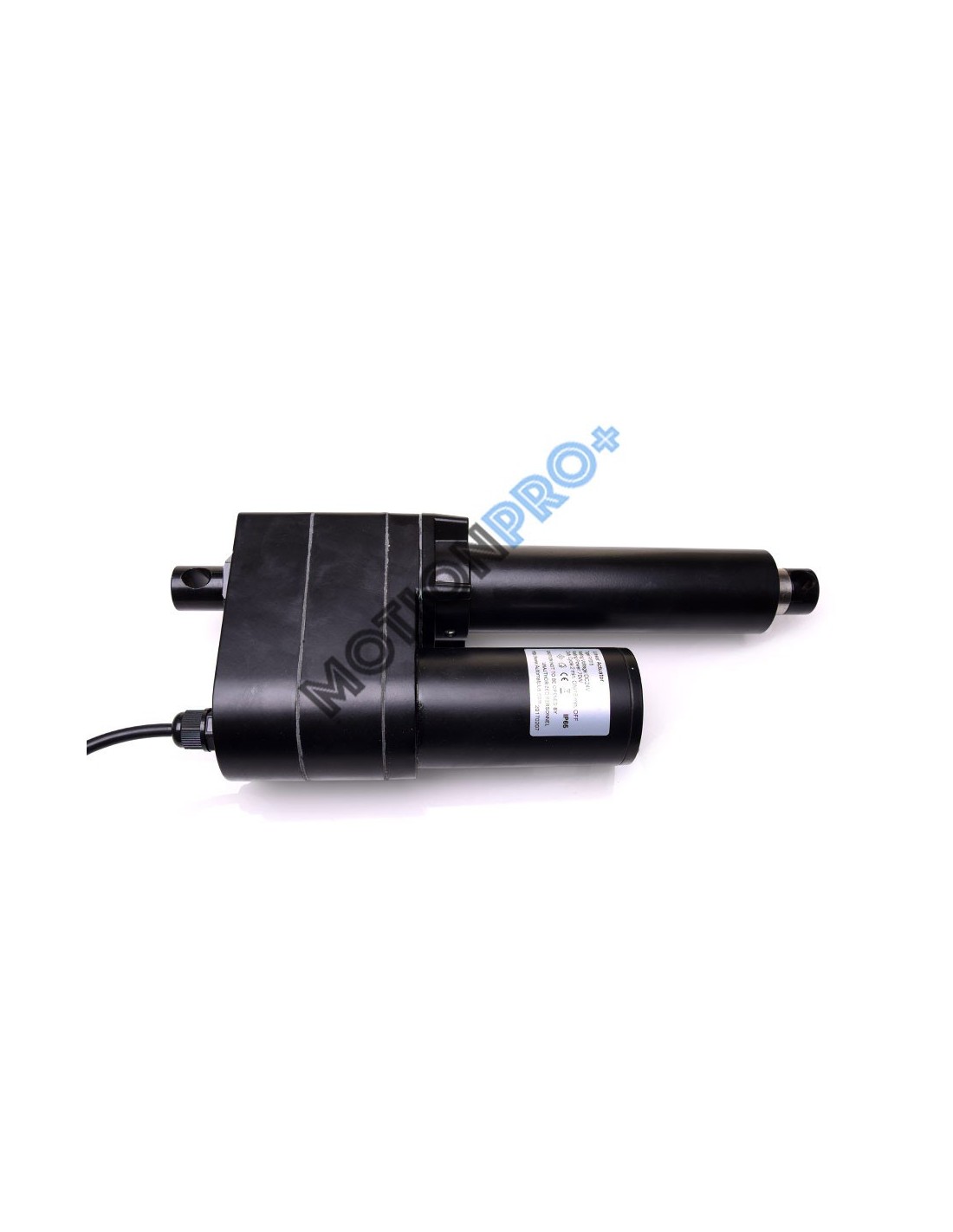

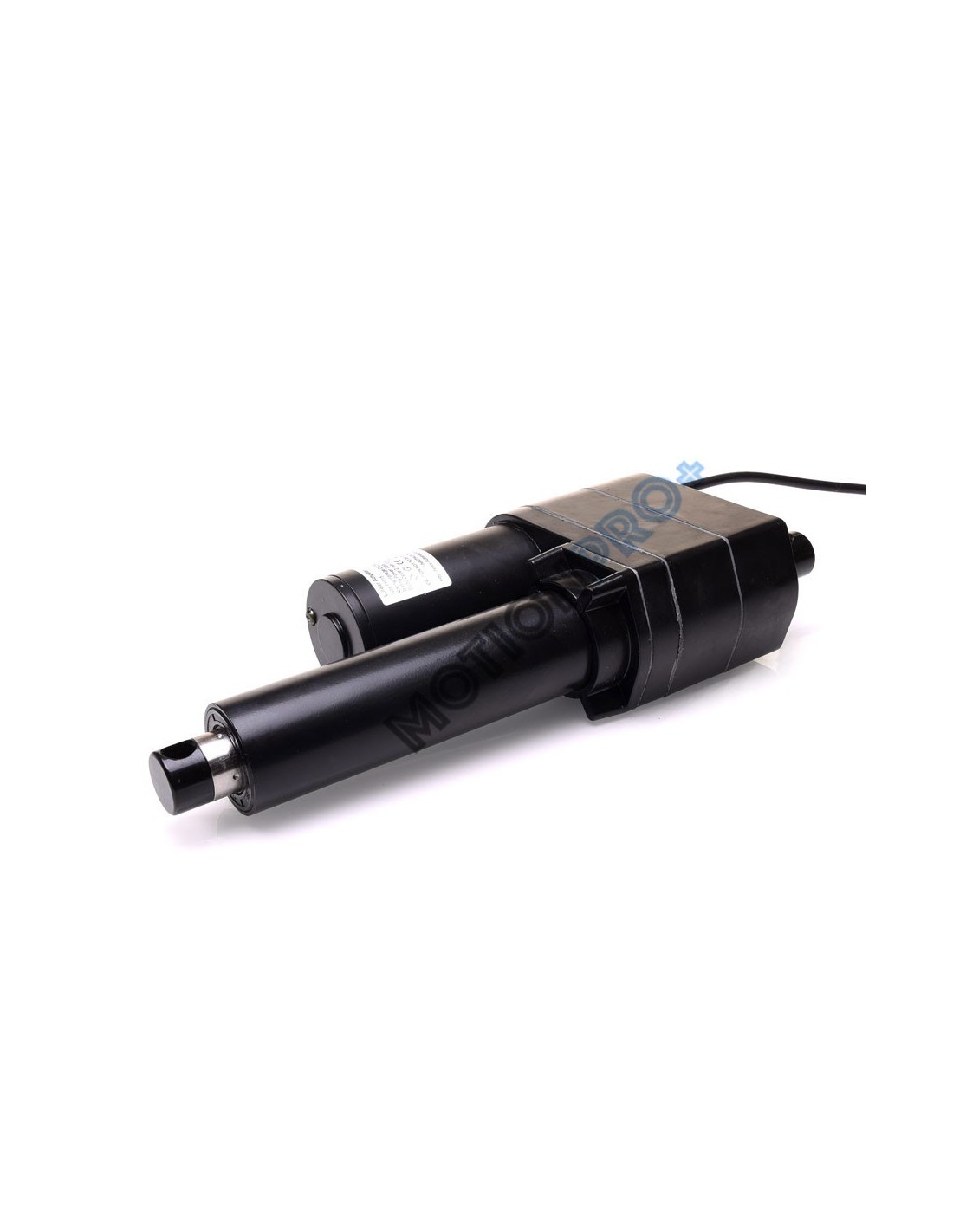

Heavy industrial electric actuator 700 kg MPP-IQ

Heavy industrial electric actuator 700 kg MPP-IQ

Name: Heavy industrial electric actuator 700 kg MPP-IQ
Brand: MotionProPlus
SKU: MPP-IQ
Price: 329 EUR
Availability: InStock

Expedition sous 24 h

€329.00

Tax excluded

Very high quality industrial and robust electric cylinder for your application requiring the movement of heavy loads.

Made of stainless steel, it will withstand all types of extreme treatment. (agricultural, boat, site)

Idle speed 12 mm/s

Speed at max load 8 mm/s

Max load of 700 kg

Static resistance load: 10000N

Cycle max : 50000

Course

Force

Vitesse

Volts

Input power	12V / 24V DC	Current consumed at maximum load:	70W
Course	The 50-1000 mm	Binding diameters:	13 mm
Force	7000 N / 700 Kg Static 2300 N	Motorization	Bruched DC motor
Speed	8 mm/s(7000N) 67 mm/s(750N)	Screw	ACME
Protection sign	IP65	Frame material	Stainless steel
Operating temperature	-25C~+65C	Certification	THIS
Noise	db<45(A)	Cycle :	25%
Limit switches	Yes(Not adjustable)	Guarantee	12 months

Course

100

150

200

250

300

Closed length (mm)

300

350

400

450

500

550

Weight (kg)

4.3

4.6

4.9

5.2

5.5

Using advice :

Connecting the red wire to a positive source and the black wire to a negative source to do the retraction, swapping the wires (so black goes to positive and red goes to negative) will get you an extension. This actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

Reference MPP-IQ

Condition New

EAN13 3760280460068

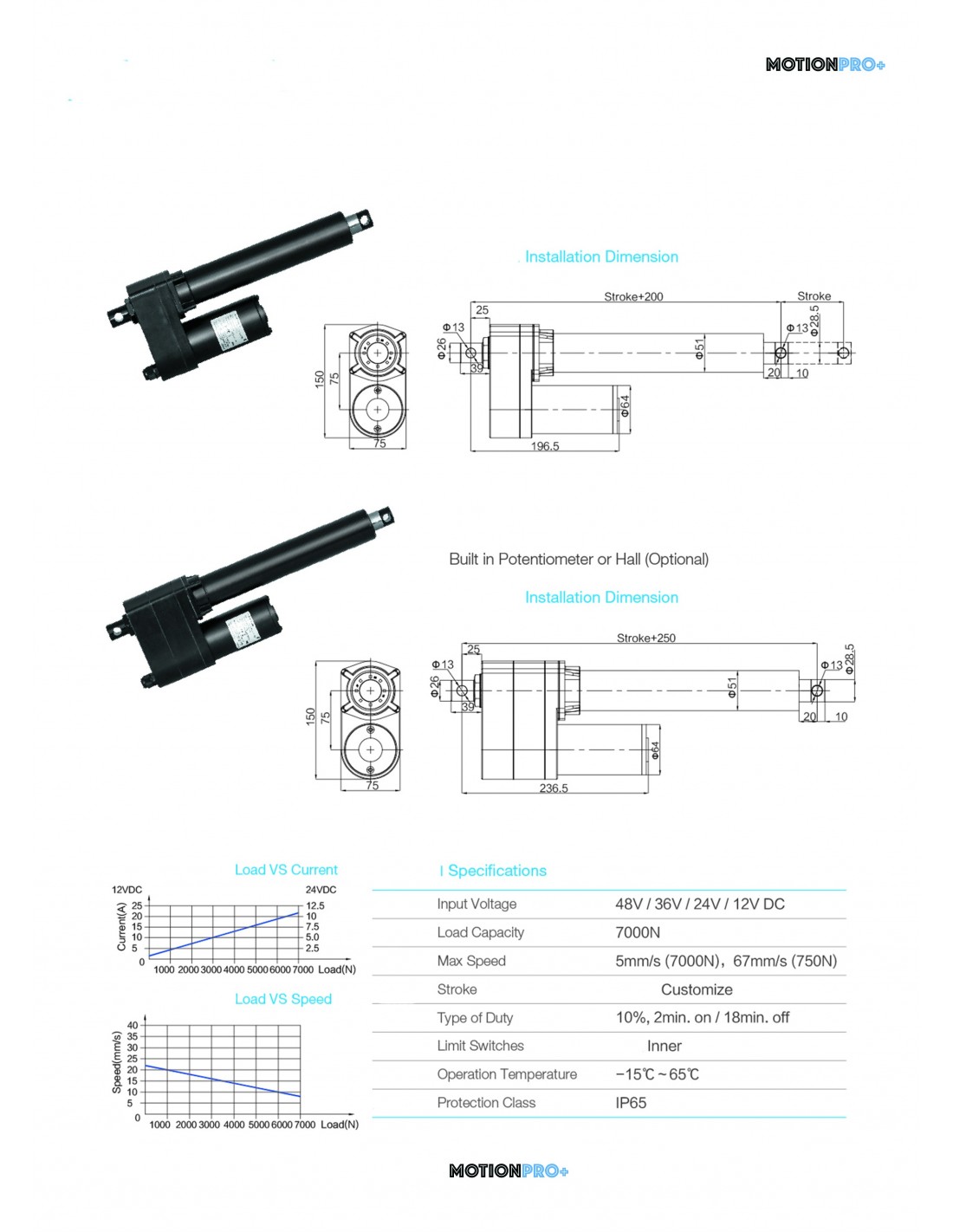

technique mpp-IQ

Download (1.31MB)
