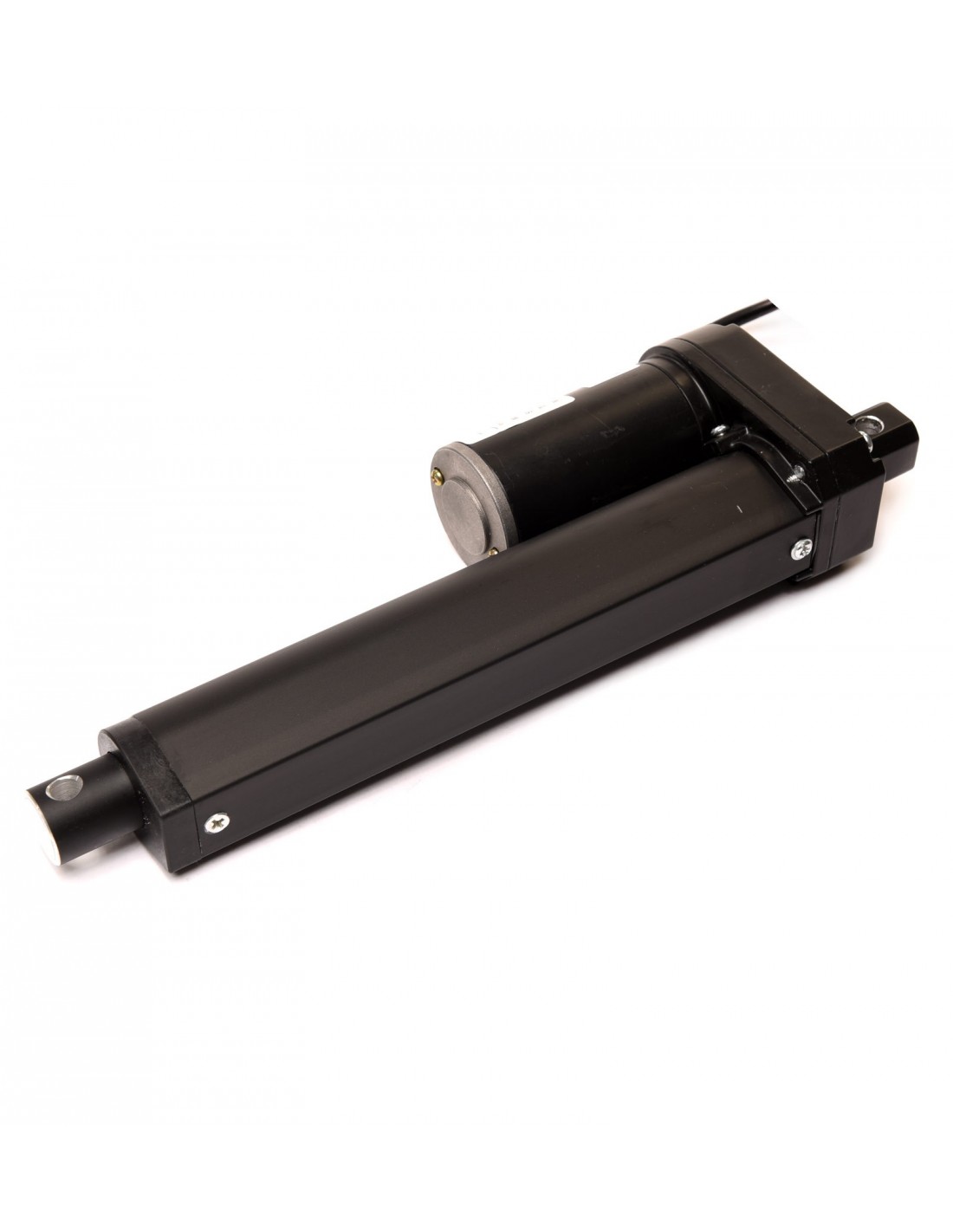

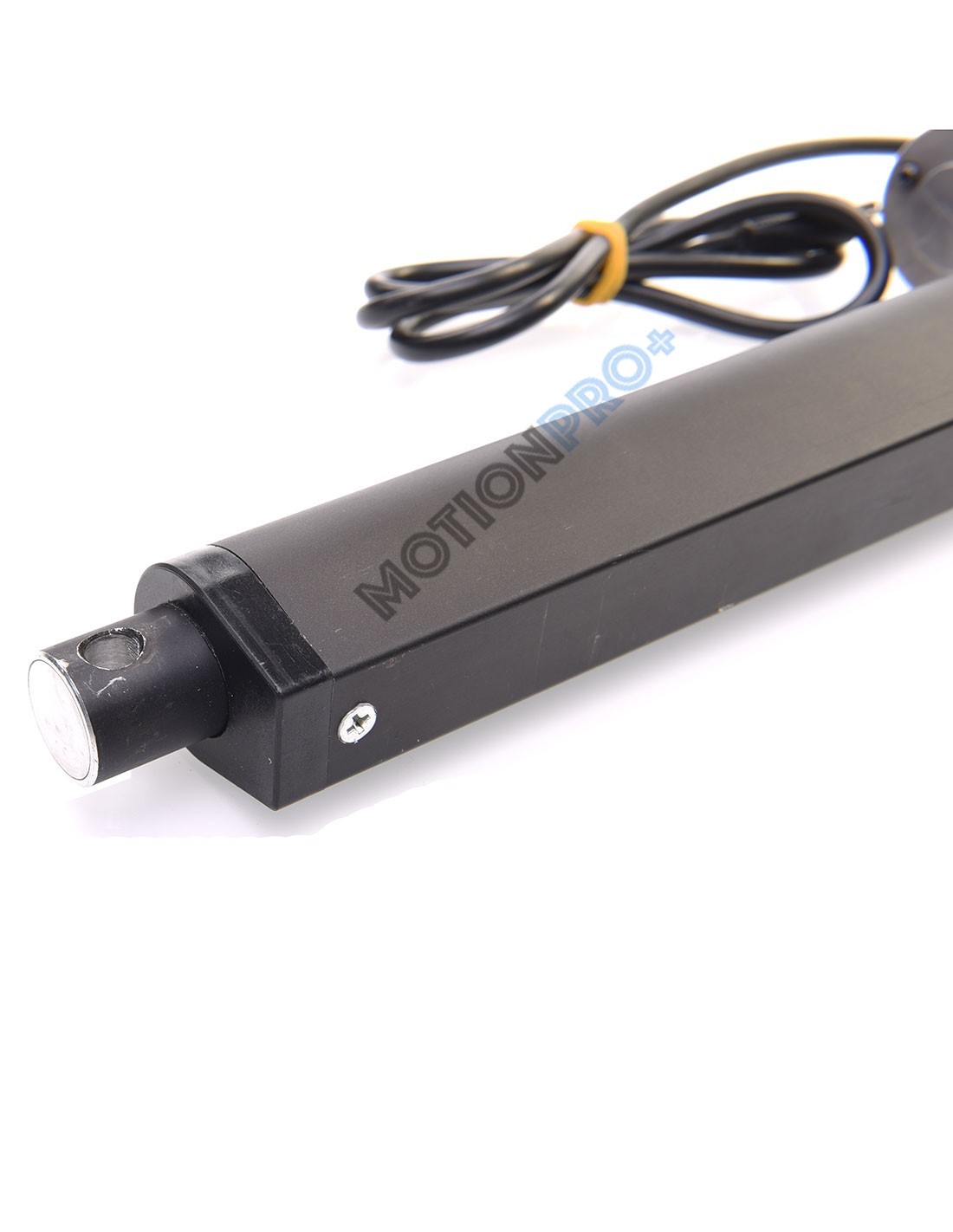

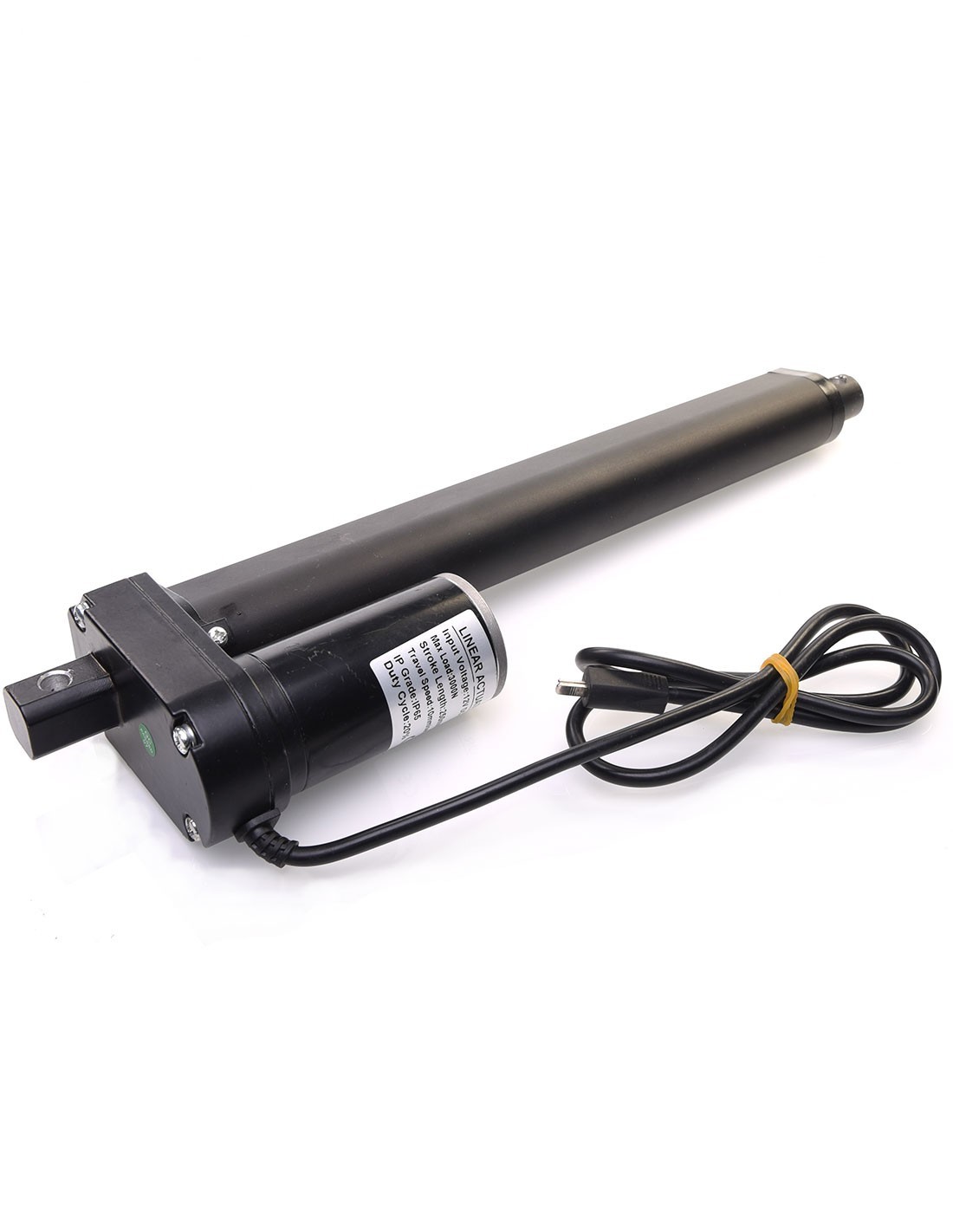

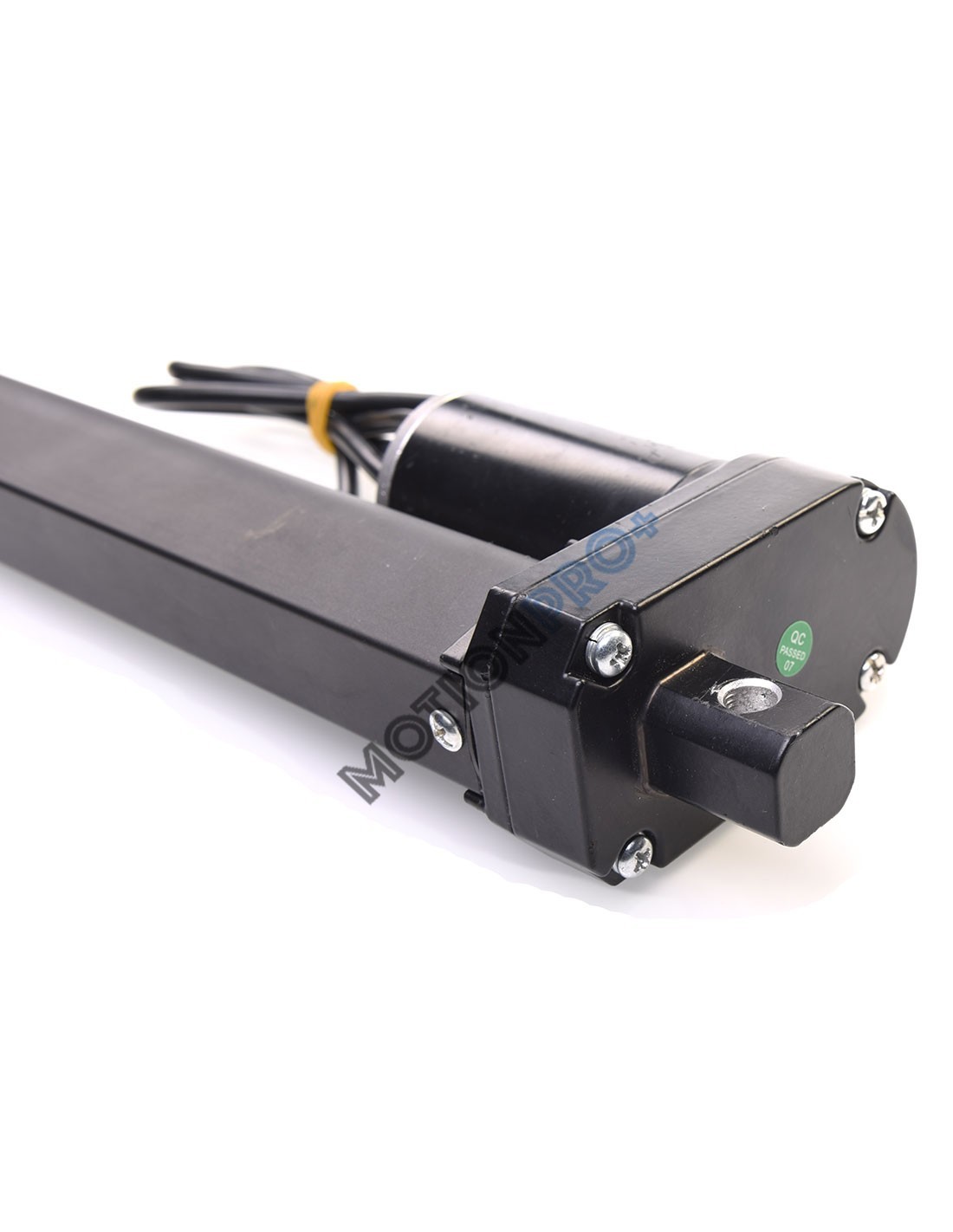

Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg
Linear actuator MPP-MD 300 Kg

Linear actuator MPP-MD 300 Kg

Expédition sous 48h
€169.92

This industrial quality electric cylinder / linear actuator is perfect for all your applications requiring industrial reliability. It will be able to move a load of 300 kg at a speed of about 10 mm/s.

It is ideal for replacing traditional hydraulic or air pressure in many aspects such as seat lifting, in boats, in all industrial elements in furniture, in caravans with removable roof……

Max static load: 5000N

lifetime: 50000 times

Course
Force
Vitesse
Volts

Quantity Unit discount You Save
5 5% €42.48
10 10% €169.92
20 15% €509.75


Input power

12V / 24V DC

Current consumed at maximum load:

8A/4A

Course

The 30-1000 mm

Binding diameters:

8.2 mm

Force

3000 N / 300 Kg

Static 4000 N

Motorization

Bruched DC motor

Speed

10 mm/s

Screw

ACME

Protection sign

IP54

Frame material

Aluminum alloy

Operating temperature

-40C~+65C

Certification

THIS

Noise

db<45(A)

Cycle :

20%

Limit switches

Yes(Not adjustable)

Guarantee

12 months



Course

50

100

150

200

250

300

Closed length (mm)

170

220

270

320

370



420



Weight (kg)

1.36

1.4

1.45

1.5

1.60

1.65

Usage tips :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

MPP-MD
3760280460143
376028046001
