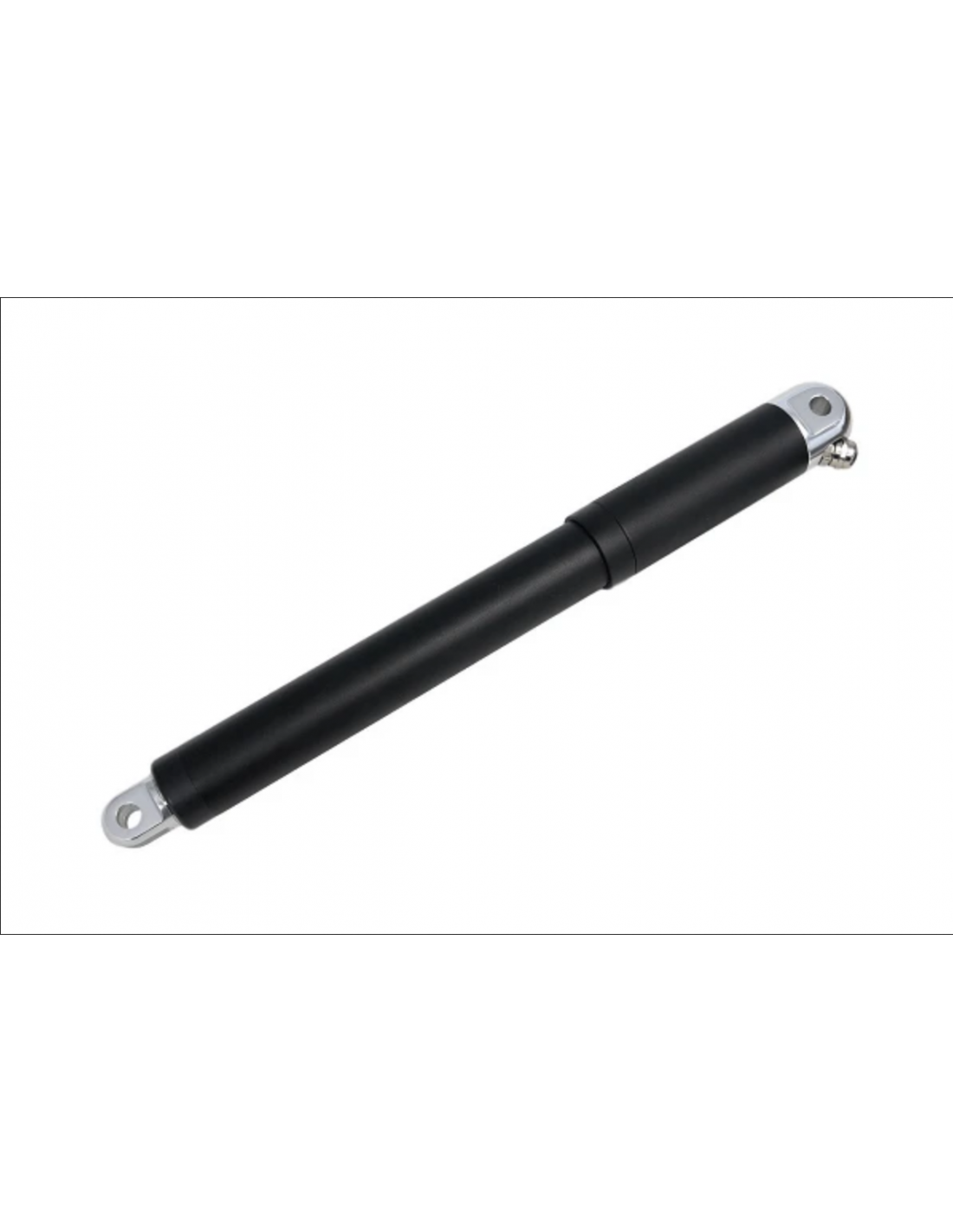

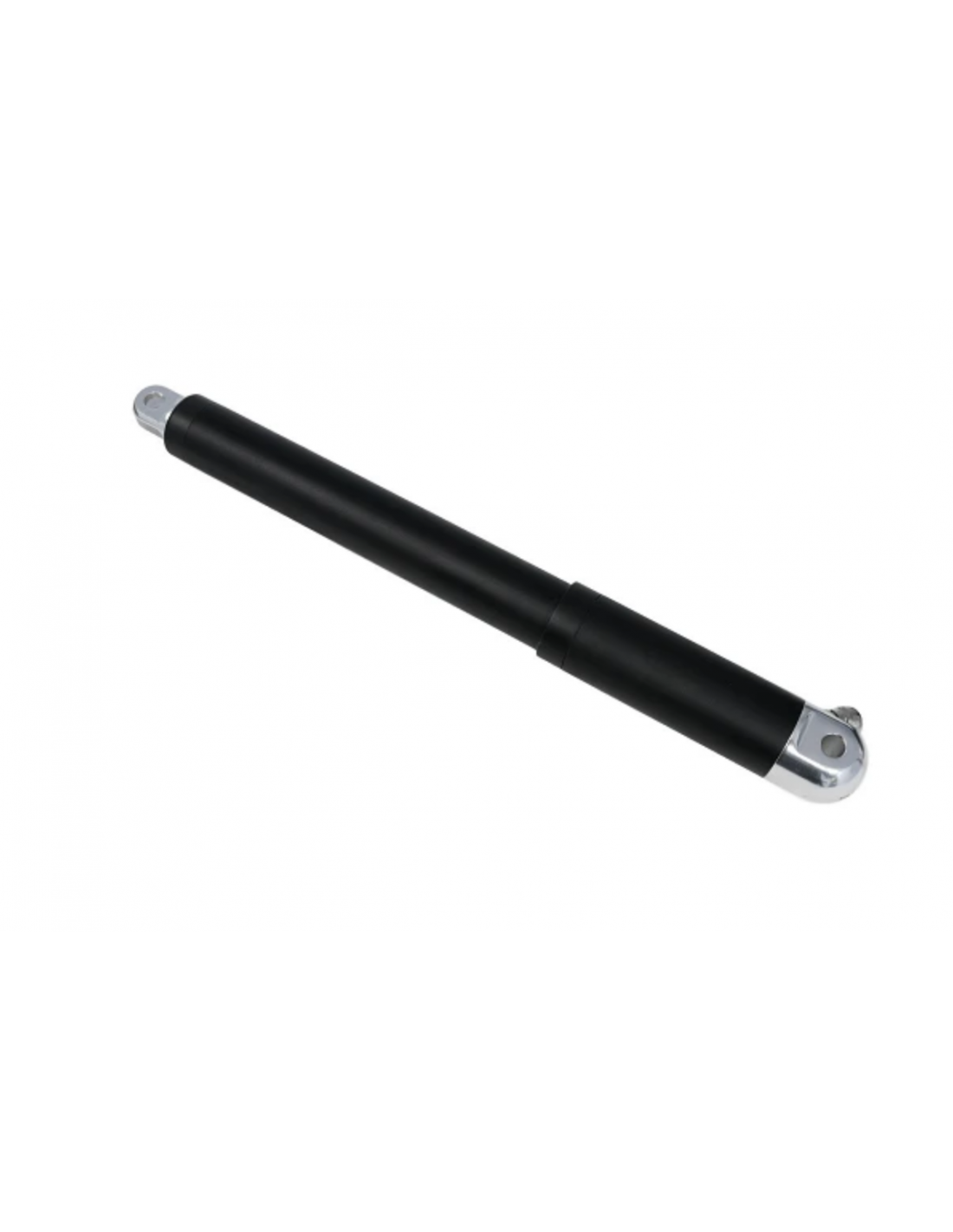

Linear actuator MPP-TW52 600 kg IP67
Linear actuator MPP-TW52 600 kg IP67
Linear actuator MPP-TW52 600 kg IP67
Linear actuator MPP-TW52 600 kg IP67

Linear actuator MPP-TW52 600 kg IP67

Last items in stock
€399.00
Tax excluded

IP67 index which allows it temporary immersion under water.

Three forces available 1200, 3000 and 6000 Newton at respective speeds of 25 mm/s, 10 mm/s and 5 mm/s.

It is ideal for outdoor applications, for automation in marine environments or agricultural machinery.

They can be synchronized thanks to the Hall-sensor option and by using the appropriate controller.



Course

50

100

150

200

250

300

350

400

450

5 00

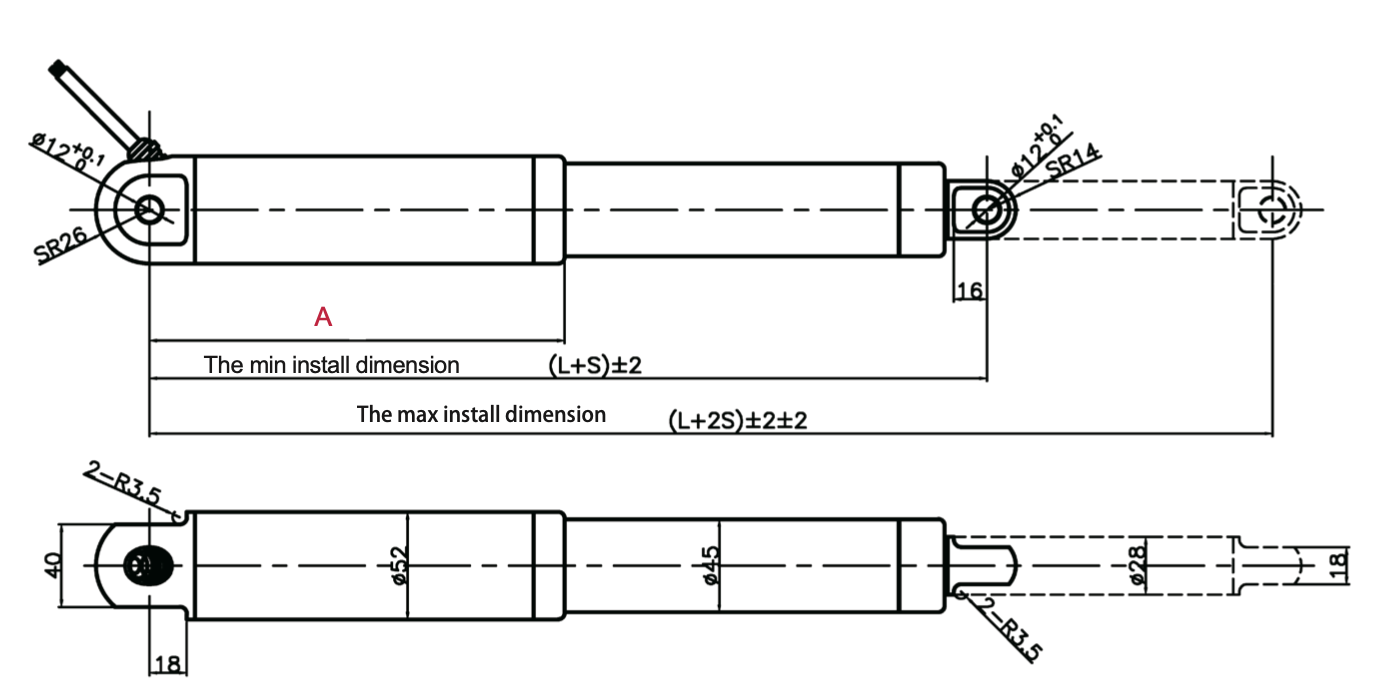

Length closed (L+S)(mm)

375

425

475

525

575



625

675

725

775

825



Weight (kg)

1.8

1.9

2

2.1

2.2

2.3

2.4

2.5

2.6

2.7

Course
Force
Vitesse
Volts





Alimentation d'entrée

12V/24V

Courant consommée à charge maximal :

10/ 5 A

Course

De 50- 500 mm

Puissance Max

150 W

Force

1200 N /3000N et 6000 N

Motorisation

Bruched DC motor

Vitesse

 5 mm/s, 10 mm/s ou 24mm/s

Force static

2400 N, 6000N et 8000 N

Indice de protection

IP66

Matière de l’armature

Matière du piston

6063 Aluminum

316 inoxidable steel

Température d'utilisation

-20C ~ +60C

Certification

CE

Bruit

db<65(A)

Cycle :

Work 2 minutes

rest 18 minutes

Capteur fin de course

Oui / Non ajustable,

Garantie

18 mois

Durée de vie ( cycles) :

10000

Vis

Trapezoid

h

MPP-TW52
