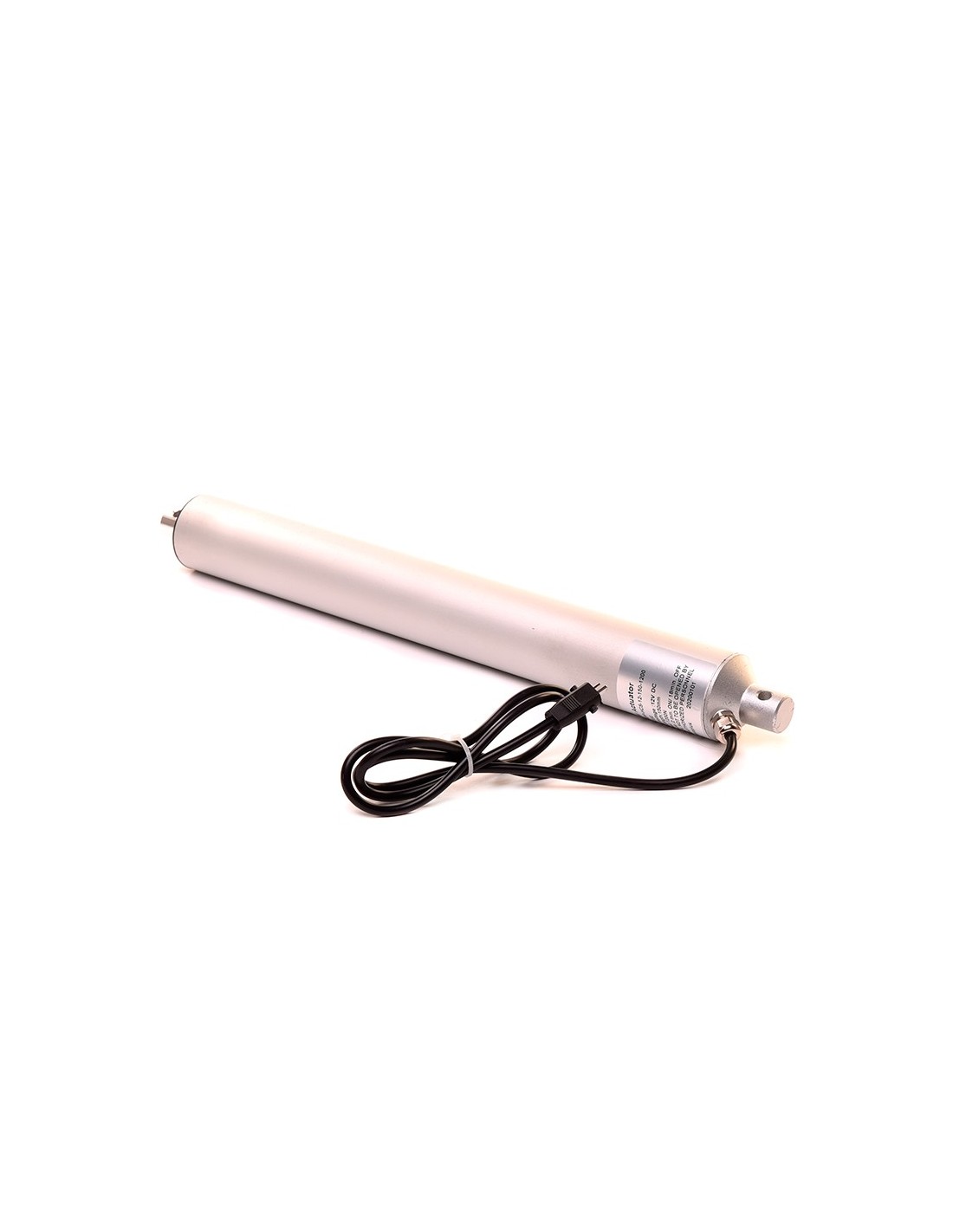

linear actuator MPP-HCS 100 kg High Quality Cylindrical

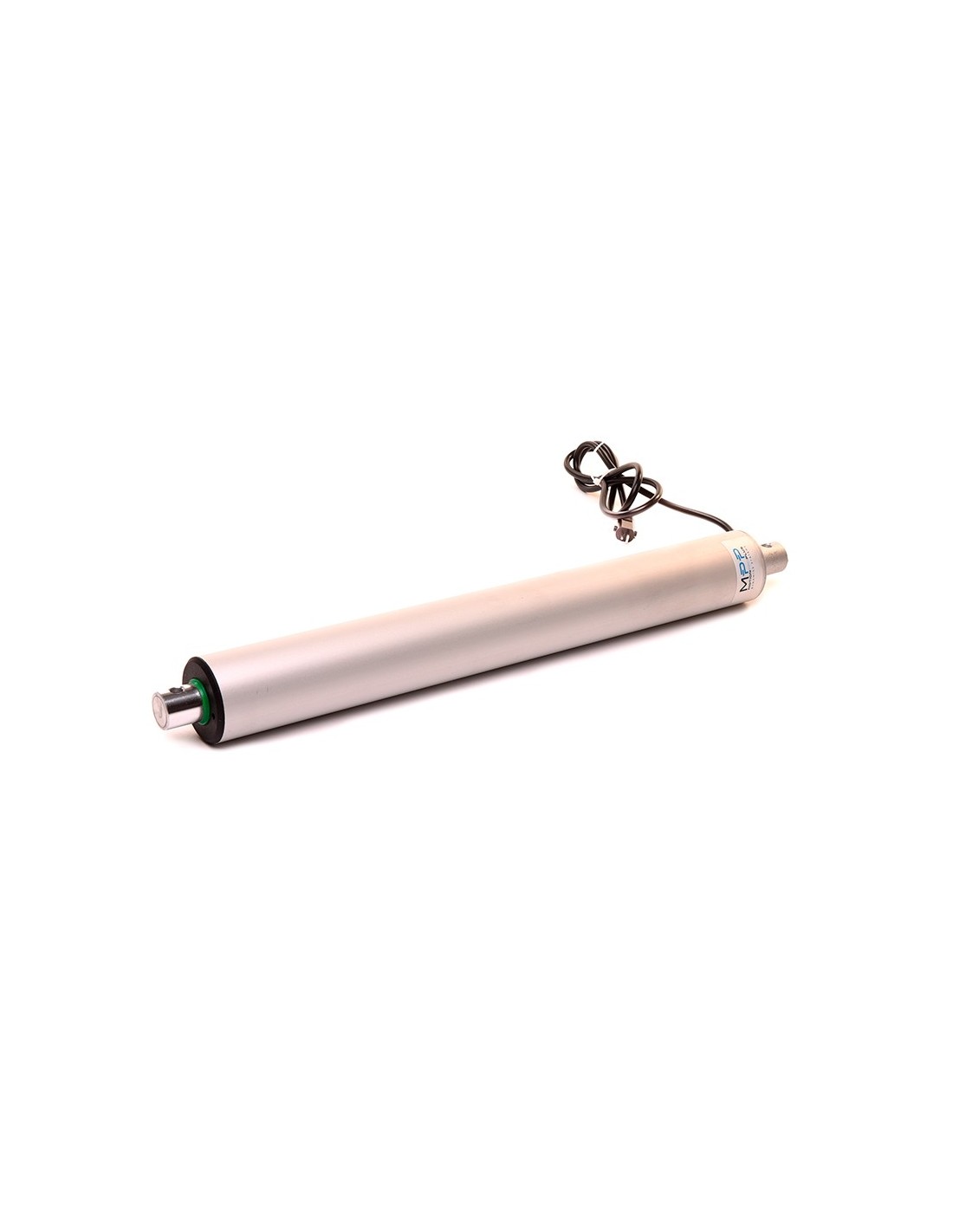

linear actuator MPP-HCS 100 kg High Quality Cylindrical

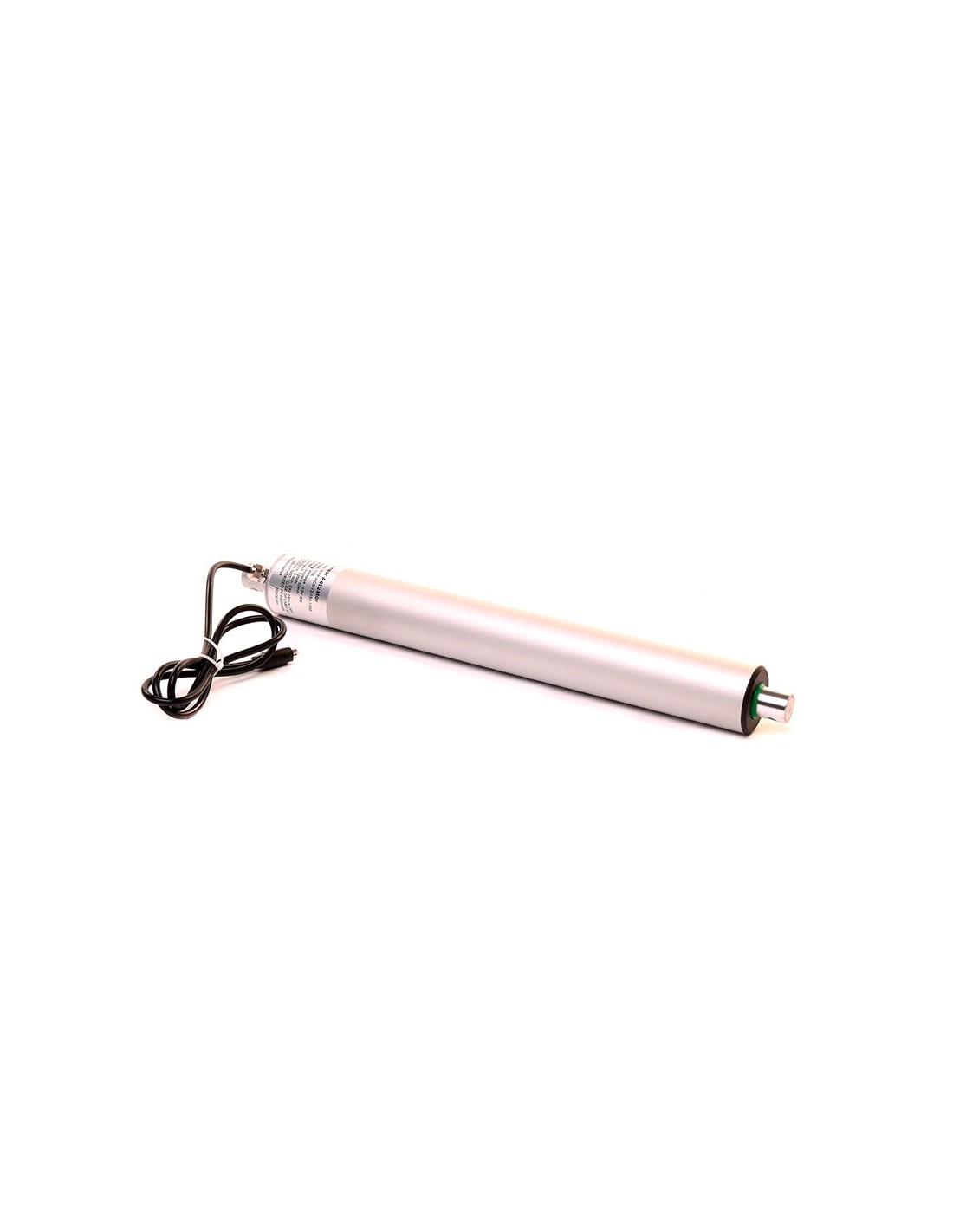

linear actuator MPP-HCS 100 kg High Quality Cylindrical

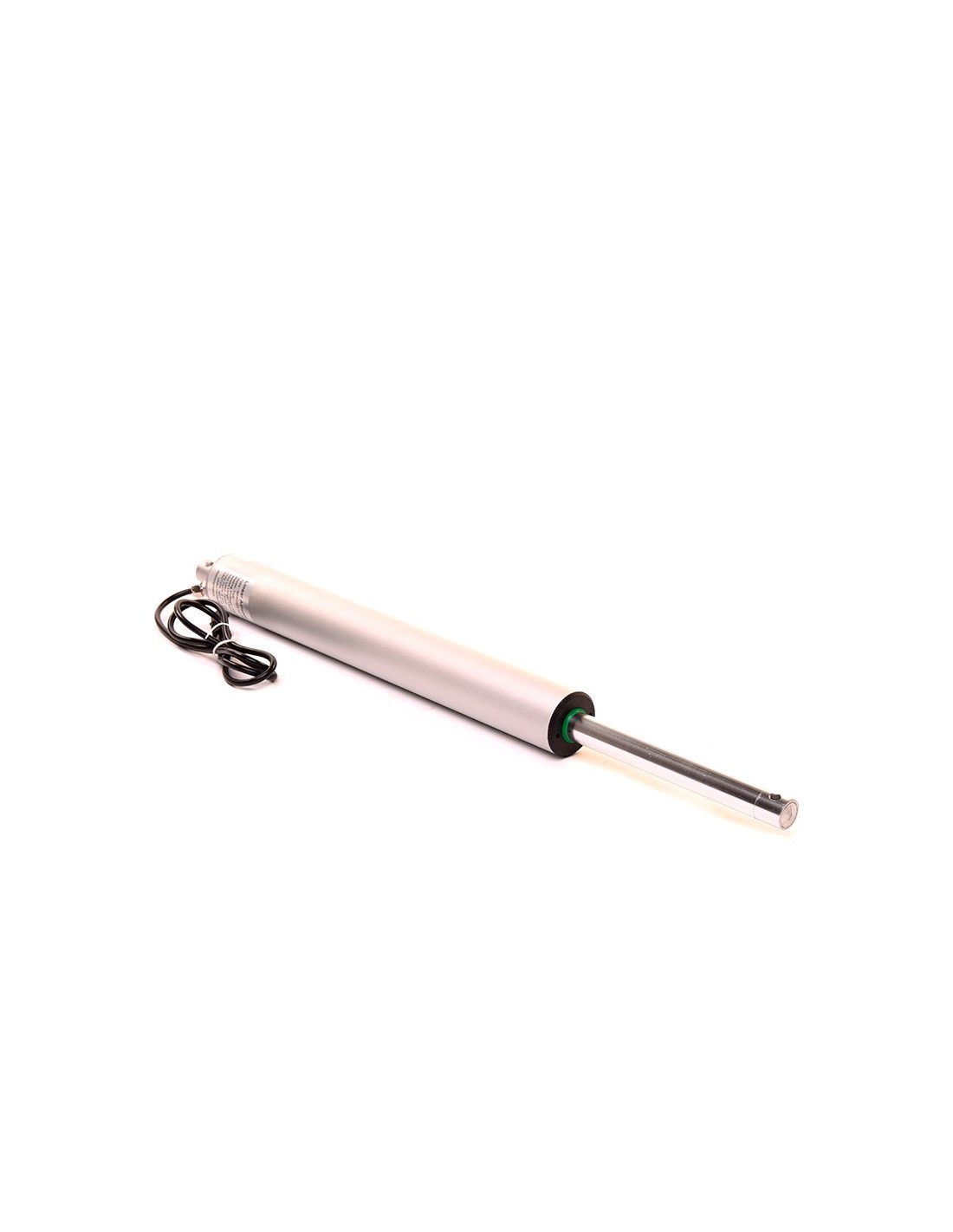

linear actuator MPP-HCS 100 kg High Quality Cylindrical

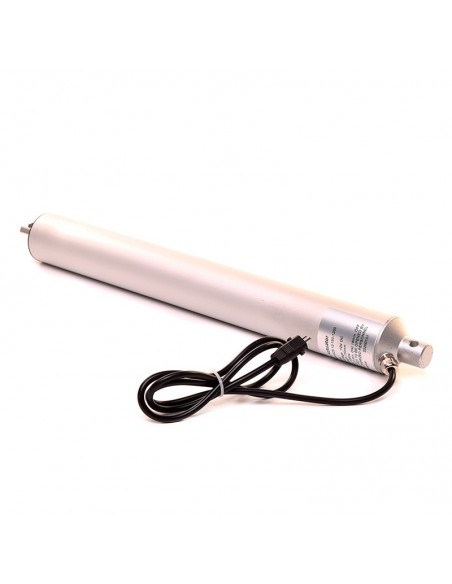

linear actuator MPP-HCS 100 kg High Quality...

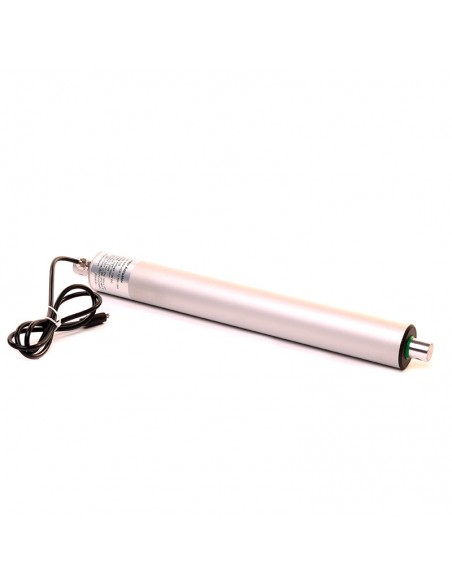

linear actuator MPP-HCS 100 kg High Quality...

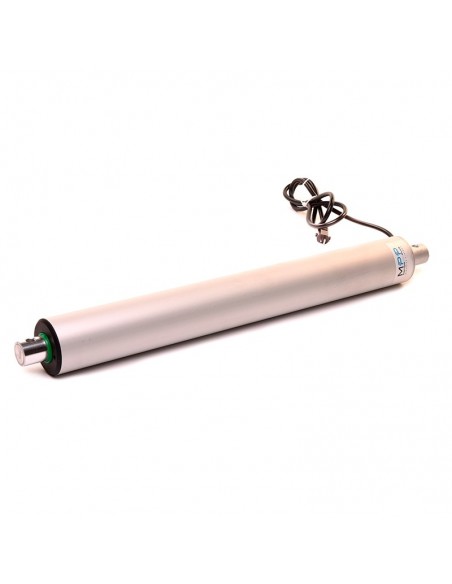

linear actuator MPP-HCS 100 kg High Quality...

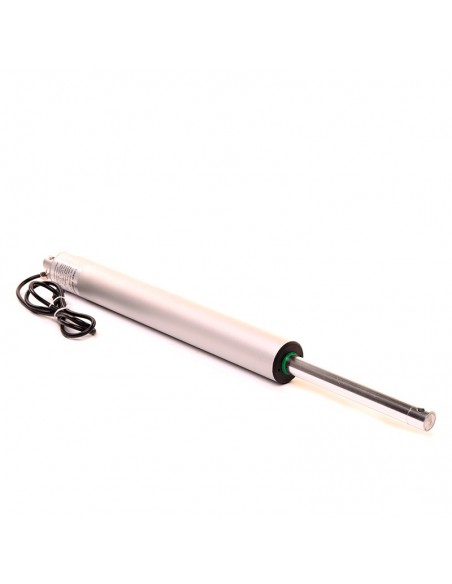

linear actuator MPP-HCS 100 kg High Quality...

linear actuator MPP-HCS 100 kg High Quality Cylindrical

En stock
€129.00
Tax excluded

The high-quality cylindrical electric actuator MPP-HCS. Capable of moving up to 100 kg. The outer tube is made of aluminum as well as the racing stem

Course
Force
Vitesse
Volts



Input power

12V / 24V DC

Current consumed at maximum load:

4A/2A

Course

The 50-700 mm

Binding diameters:

6 mm

Force

1000 N/100 Kg

Static 2000 N

Motorization

Bruched DC motor

Speed

10 mm/s

Screw

ACME

Protection sign

IP65

Frame material

6062 Aluminum

Operating temperature

-25C~+65C

Certification

THIS

Noise

db<45(A)

Cycle :

25%

Limit switches

Yes(Not adjustable)

Guarantee

12 months

Course

50

100

150

200

250

300

Closed length (mm)

300

350

400

450

500



550



Weight (kg)

1

1.15

1.26

1.37

1.48

1.6

Using advice :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

MPP-HCS
3760280460273
