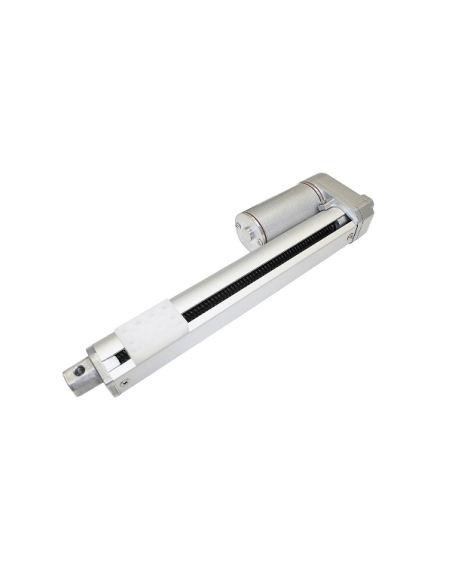

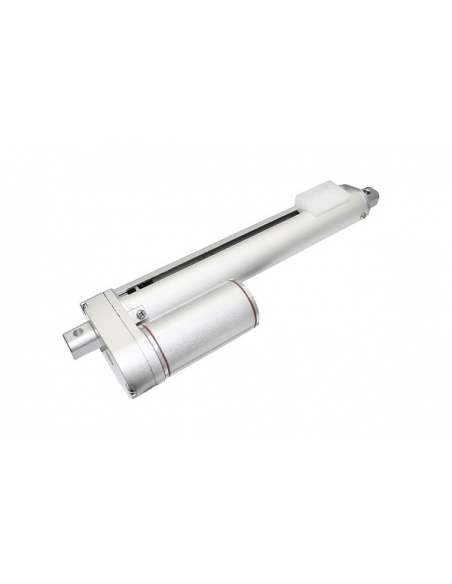

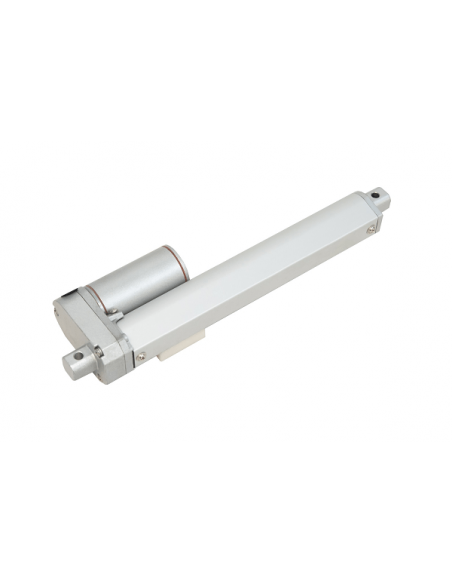

Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS

Linear actuator track 65 Kg sliding MPP-ECS

Expédition en 48 heures
€89.92
Tax excluded

Linear actuator with electric motor and ACME screw. Equipped with built-in non-adjustable end-of-travel sensor at the start and end of the run which allows the power supply to be stopped automatically. The change of direction by simply reversing the polarity of the applied voltage. (special switch available on our site) Stroke length can be customized on request as well as speed and force. Any increase in speed implies a loss of strength. ( inversely proportional)

Course
Force
Vitesse
Volts

Quantity Unit discount You Save
5 5% €22.48
10 10% €89.92
20 15% €269.75
50 20% €899.17


Input power

12V / 24V DC

Current consumed at maximum load:

5A/2.5A

Course

The 30-700 mm

Binding diameters:

6 mm

Force

650 N / 65 Kg

Static 2300 N

Motorization

Bruched DC motor

Speed

8 mm/s

Screw

ACME

Protection sign

IP20

Frame material

6062 Aluminum

Operating temperature

-20C~+65C

Certification

CE and RoHs

Noise

db<60(A)

Cycle :

25%

Limit switches

Yes(Not adjustable)

Guarantee

12 months

Course

50

100

150

200

250

300

Closed length (mm)

167

217

267

317

367



417



Weight (kg)

0.7

0.85

0.9

1

1.1

1.2

Using advice :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

MPP-ECS
New
3760280460266
