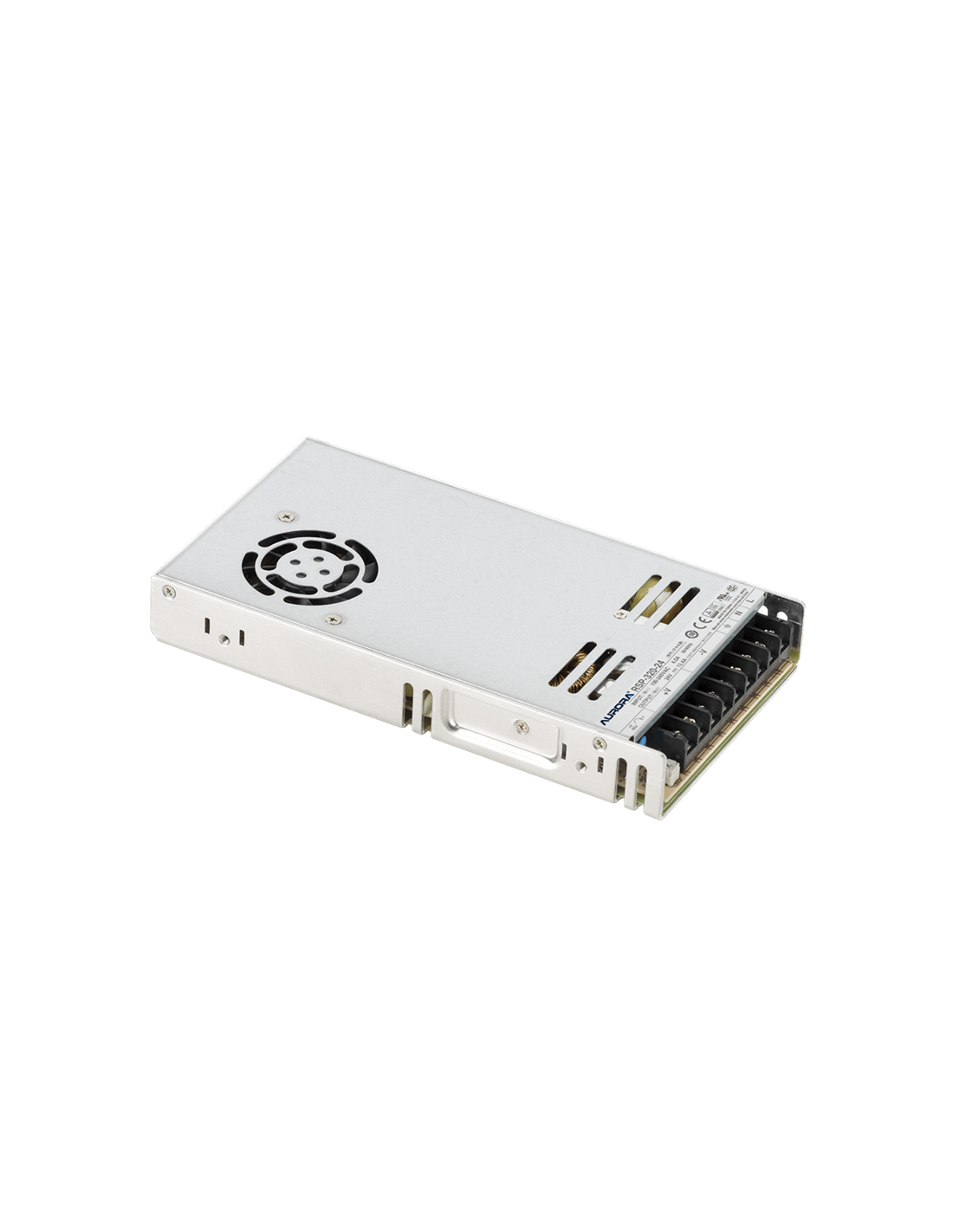

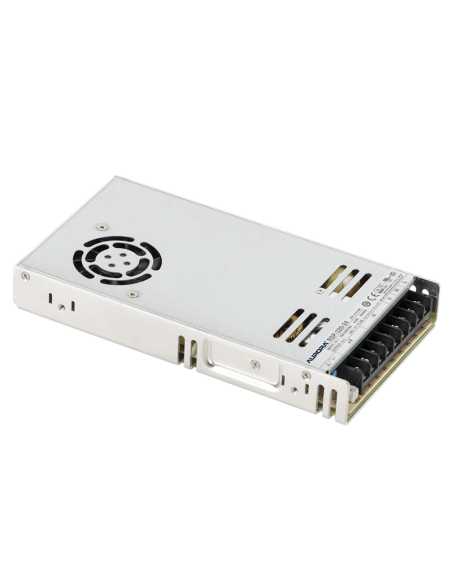

Mean Well Switch Mode Power SupplyThe Mean Well RSP-320 Integrated AC/DC Switching Power Supplysingle output 321.6 W is rated at 13.4 A output at 24 VDC. It has a universal input supply voltage of 88 to 264 VAC and 124 to370 VDC Power supply is 40% smaller than corresponding models.The ambient temperature ranges from 30°C and 50°C under full load conditions and up to 70°C with suitable derating.AppsIndustrial control systemMechanicalElectrical industryInstrumentsLED display or any system requires low profile installations•Compatible with the ITEX and IQ range for heavy loads.
Note: The use of this professional power supply requires certain precautions.It must be installed in an electrical box or cabinet in compliance with the standards in force and must not be accessible during use.Features and Benefits30mm low profile design for 1U installation.Integrated active PFC functionHigh efficiency up to 90%Ventilated cooling by built-in DC fanShort circuit protection.Overload protection.Over voltage and over temperature protectionLED indicatorUL60950-1Ass60950-1TUV60950-1CB approvedCCC ApprovalEn55032 (CISPR32) Class BEN61000-3-2 -3GB9254 class B.GB17625.1
Very high quality industrial and robust electric cylinder for your application requiring the movement of heavy loads.
Made of stainless steel, it will withstand all types of extreme treatment. (agricultural, boat, site)
Idle speed 12 mm/s
Speed at max load 8 mm/s
Max load of 700 kg
Static resistance load: 10000N
Cycle max : 50000
This all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. Current: 2A (max 7A) Short circuit protection. Compatible only with the following 12 volt actuators:
This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position.
Fixing support for linear electric cylinder. Very practical for opening a hatch for example. It supports a force of 300 kg for the MPP-MD model. Two pieces are recommended at each end of your linear actuator. COMPATIBLE with the MPP-MD actuator.
Mounting braket for linear actuator. Very practical for opening a hatch for example. It supports a force of 250 kg for the light version compatible model MPP-EC or MPP-ECH MPP-CCS Two pieces are recommended at each end of your linear actuator.
This control box allows 100% synchronized control of two Hall effect actuators. The control box comes with all hardware required for wireless operation, including two FCC-approved wireless remote controls with momentary and non-momentary motion control capabilities. Please note that this control box is only compatible with a pair of hall effect actuators...
10 → 35 Vdc
12 VDC; 24 VDC
Compatible engine type
Panel Mount, DIN Rail Mount
72 x 25 x 42mm
Operating temperature range
-40 → +60°C
Axis measurement in closed axis: 105+stroke Axis measurement in open axis: 105 + stroke + stroke Example for a 100 mm stroke. The electric cylinder closed from axis to axis will be 205 mm and open 305 mm Weight: 1kg Linear actuator with electric motor and ACME screw. Equipped with built-in non-adjustable end-of-travel sensor at the start and end of the...
Remote control box for electric cylinder or linear actuator.
This kit which connects to a 12v or 24 V power source (car/boat battery, etc.) will allow you to control your electric actuator.
Very easy installation, two plus and minus wires connected at the input and two at the output for the electric cylinder.
