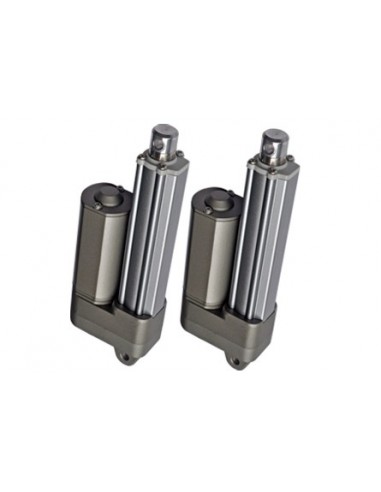

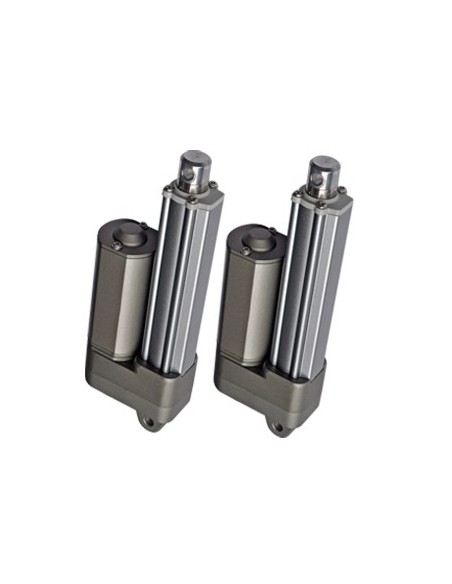

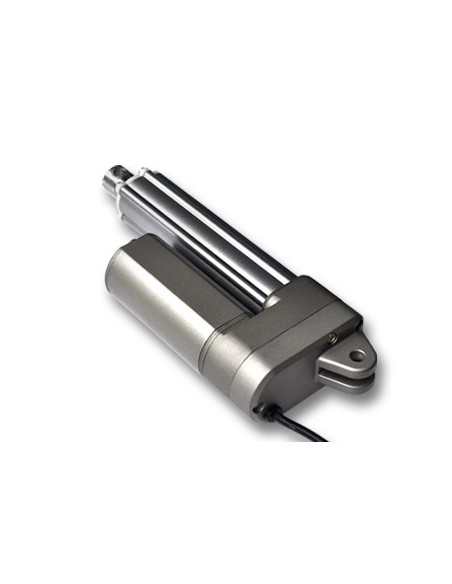

Synchronized Dual Hall Effect linear Actuator

Product available with different options
€299.00
Tax excluded

Specification:

  • Working voltage: 12V DC/24V DC
  • Mini mounting length: stroke + 112mm (no sensor hall output)
  • Loading range: 1000N - 2500N
  • Stroke length (mm): 100-400mm
  • Color: silver
  • Waterproof:  IP66
  • Hall effect for option
  • Ambient temperature -25 - 65°C
  • Duty cycle: 20%, max 4min. continuous use
  • Limited switch built-in
  • Quiet and powerful design

Course
Force
Vitesse
Volts

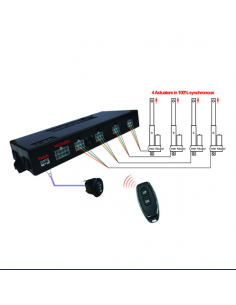

Attention: Price for only one cylinder, if you want synchronization you will have to order two cylinders as well as the MPP-CS1 synchronization kit

MPP-MDM
