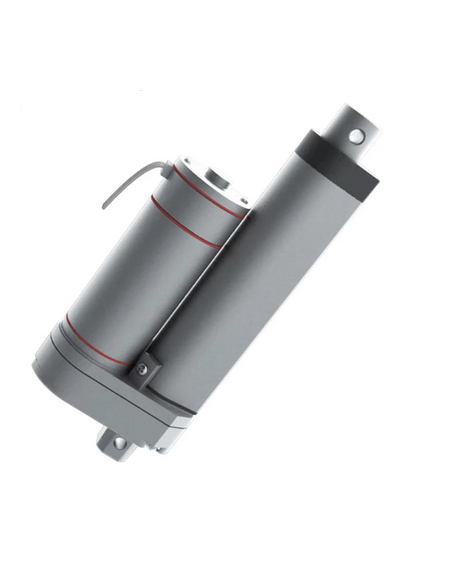

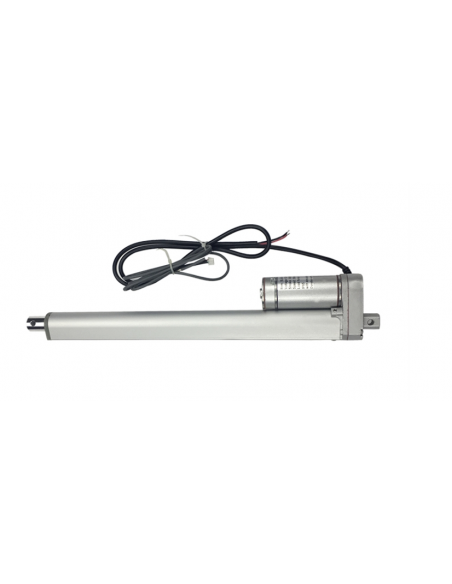

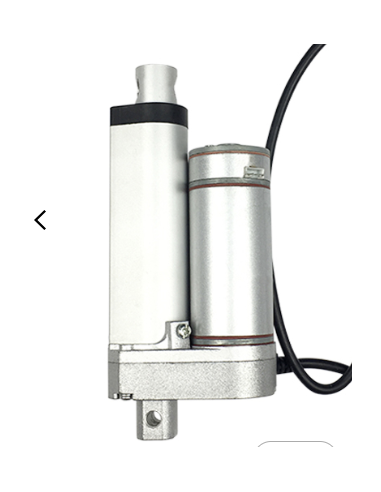

Linear actuator Encodeur MPP-ECP 90 kg

Name: Linear actuator Encodeur MPP-ECP 90 kg
Brand: Motionproplus
SKU: MPP-ECP
Price: 88.8 EUR
Availability: PreOrder

Rupture de stock production de 15 jours nécessaire

€88.80

Tax excluded 15

This model adds an encoder to the original MPP-EC model.

This type of lightweight and compact aluminum electric linear actuator uses a DC motor element, a
speed reduction element and an internal micro-switch to stop the stroke automatically after it is finished.

The internal chip of the electrical signal processed by the encoder could recognize the stretching direction according to its
internal multiple photoelectric sensors, realize the stroke visualization and control.

Course

Force

Vitesse

Volts

Input power	12V / 24V DC	Current consumed at maximum load:	4A/2A
Course	The 50-800 mm	Binding diameters:	6 mm
Force	900 N / 90 Kg Static 2300 N	Motorization	Bruched DC motor
Speed	8 mm/s	Screw	ACME
Protection sign	IP54	Frame material	6062 Aluminum
Operating temperature	-25C~+65C	Certification	THIS
Noise	db<45(A)	Cycle :	25%
Limit switches	Yes(Not adjustable)	Guarantee	12 months

Course

100

150

200

250

300

Closed length (mm)

155

205

255

305

355

405

Weight (kg)

0.7

0.8

0.9

0.96

1.1

1.2

Using advice :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

If you are familiar with microcontroller or PLC board, this actuator will be perfect otherwise, it is just a normal actuator.

Encoder Wiring Method: Red Line Connect +5V; Black Line Connect GND( Power Supply Negative ); White & Yellow Line Connect A/B Pulse Output

The built-in encoder. Photoelectric sensors can be directly connected with a microcontroller or a PLC. This will determine the inversion of the motor, the control of the position of the race, the synchronization .....

Reference MPP-ECP
